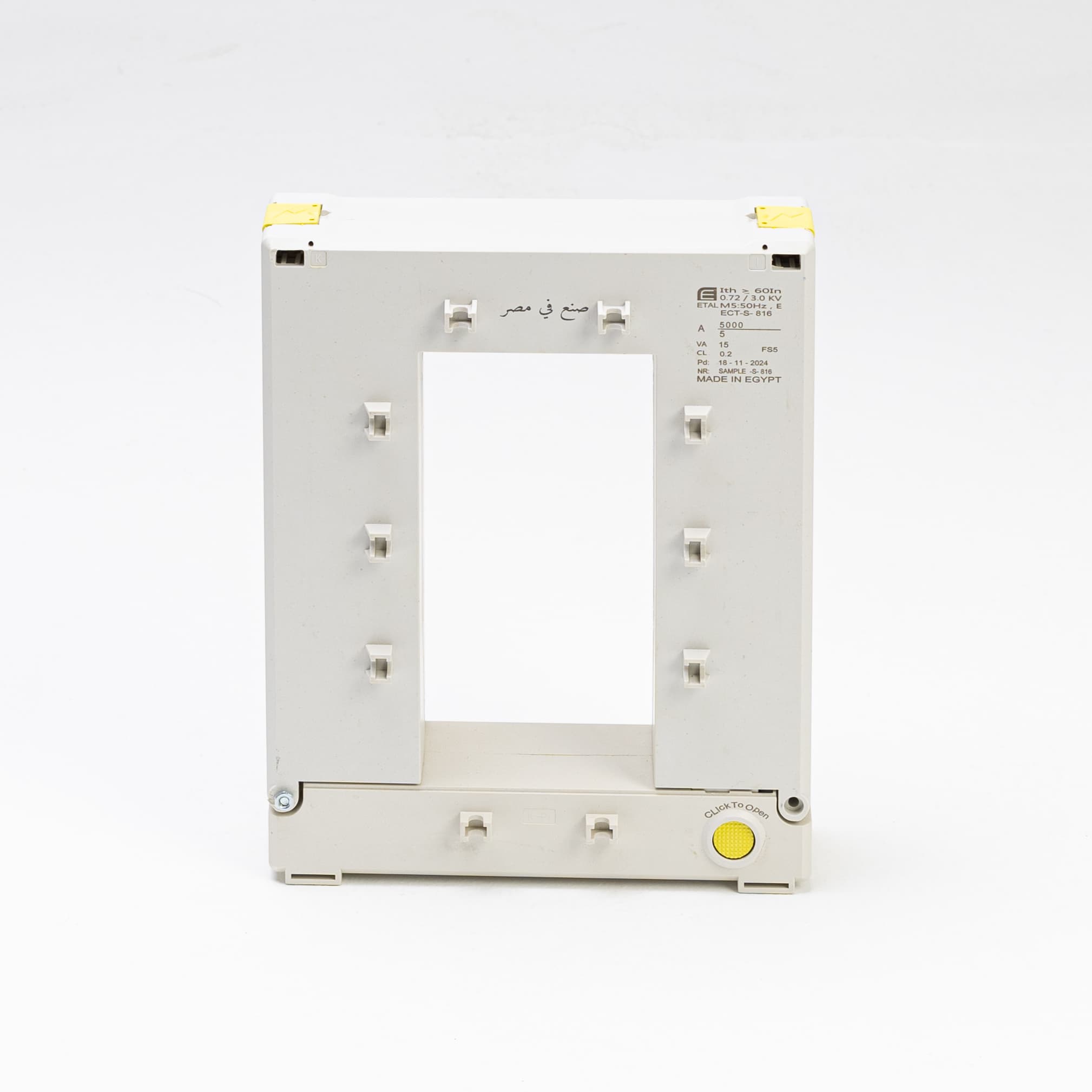

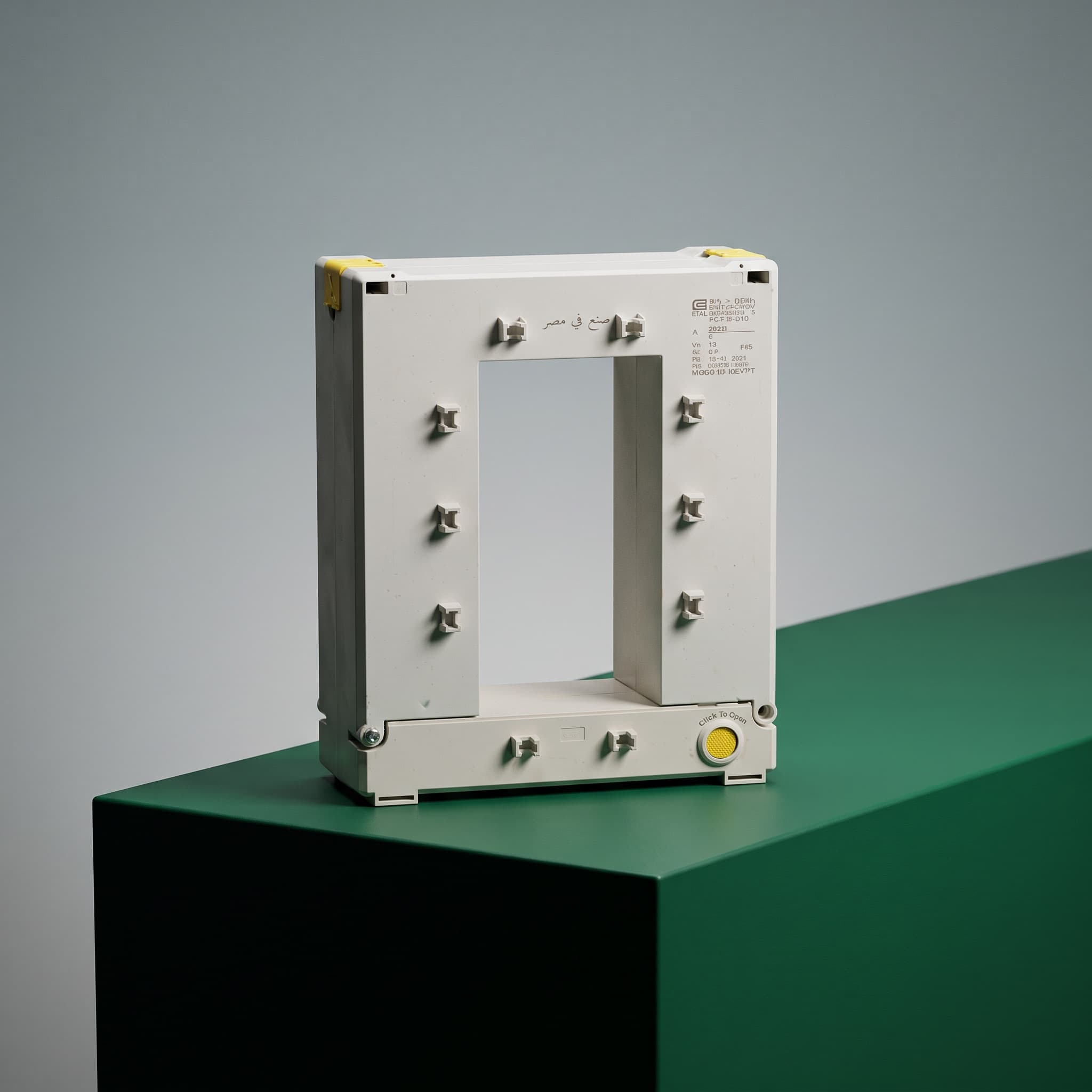

Current Transformers
ECT-S-816
Current Transformers
ECT-S-816
Technical Specifications
Electrical
Primary current1000~7000 A
Burden2.5~30 VA
Accuracy1-0.5-0.5s-0.2-0.2s Class
Operational
LocationIndoor Installation
Operating Temp.Up to 55 掳C
Measuring voltage3 kV 1 min
Max. allowed operating voltage0.72 kV
Measuring frequency50 Hz
Nominal thermal short-time current>60 In
Applications & sectors
IndustrialOil & GasPower DistributionData CentresRail & TransportRenewable Energy
Supporting documents
Technical files are available on request
This product does not yet have public files in the library. Contact ETAL and we will route the right datasheet, drawing, or certificate to your team.
