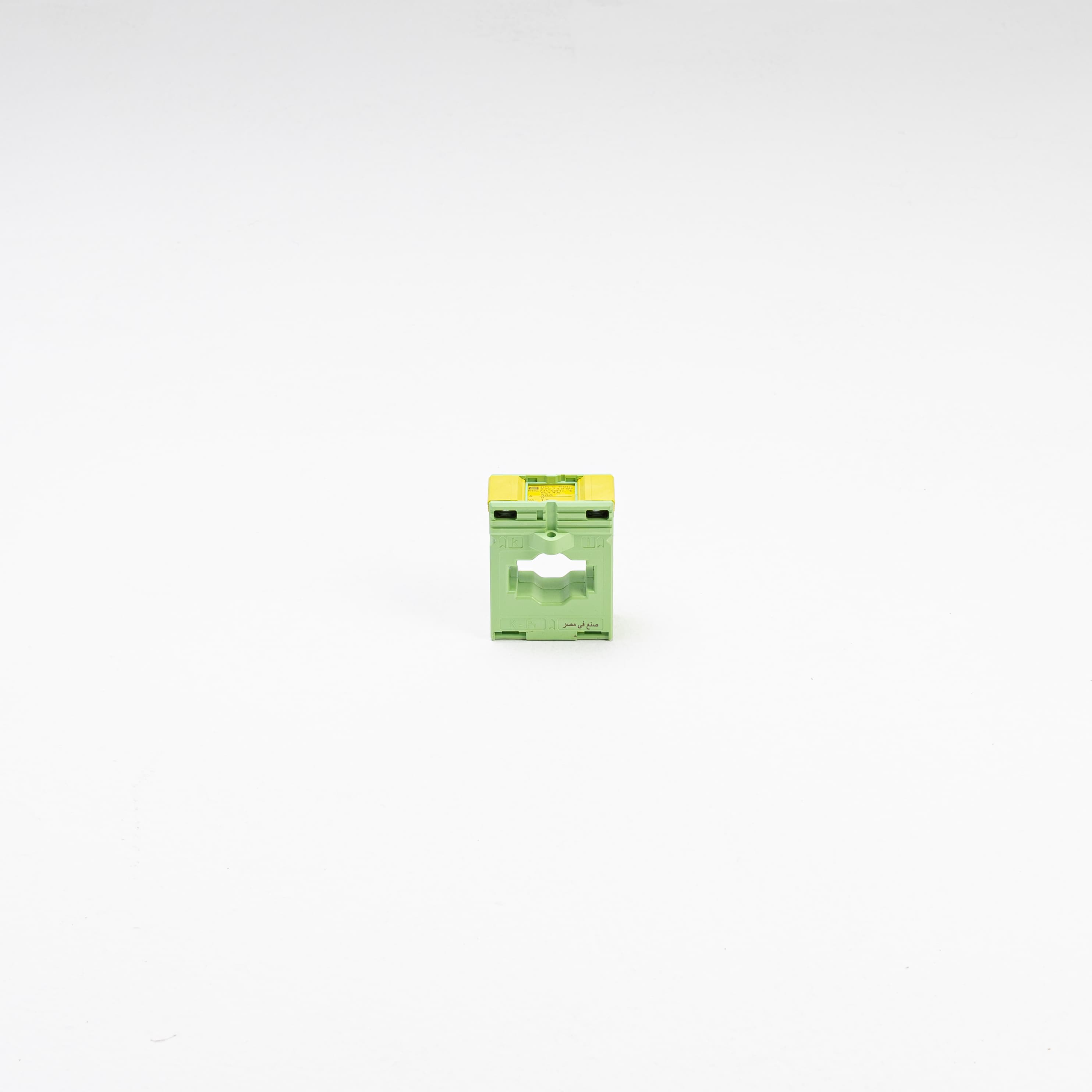

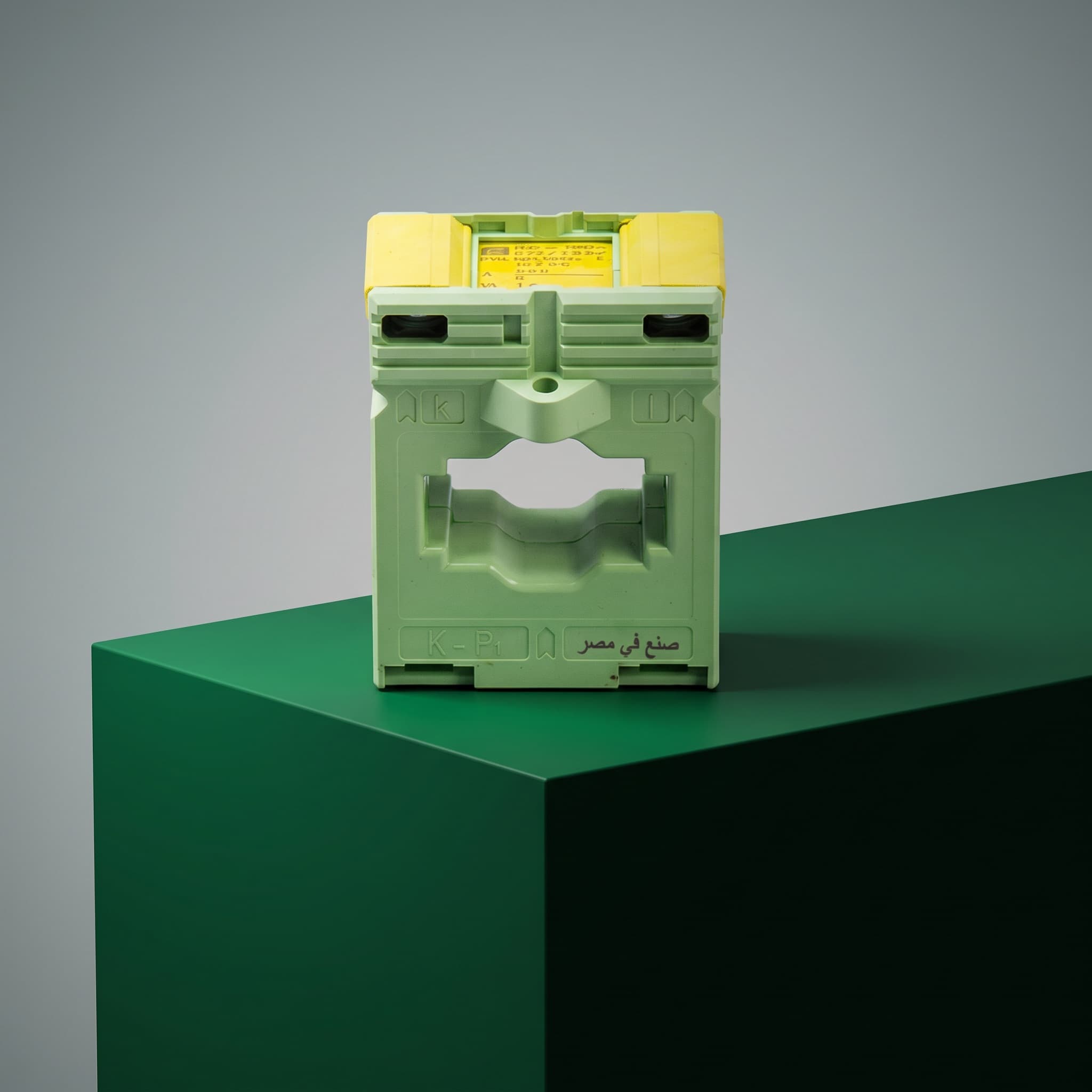

ECT-4.6 Current Transformer

ECT-4.6 Current Transformer

ECT-4.6 current transformer for 125–800A primary current, accuracy classes 0.2 to 1, 60mm outer width, dual busbar configuration options. The ECT-4.6 handles primary currents from 125 A up to 800 A, with mounting for a single 40×12 mm bar, a single 32×18 mm bar, or a 26 mm round conductor, in a 60 mm outer width housing. It spans all three accuracy classes — 0.2, 0.5/0.5s, and 1 — with burden ratings from 1 VA to 15 VA, giving it the accuracy range for revenue metering at the lower end and robust protection duty at higher currents, all in one model.
